Windows SMTP

Configuring parameters in Passwork

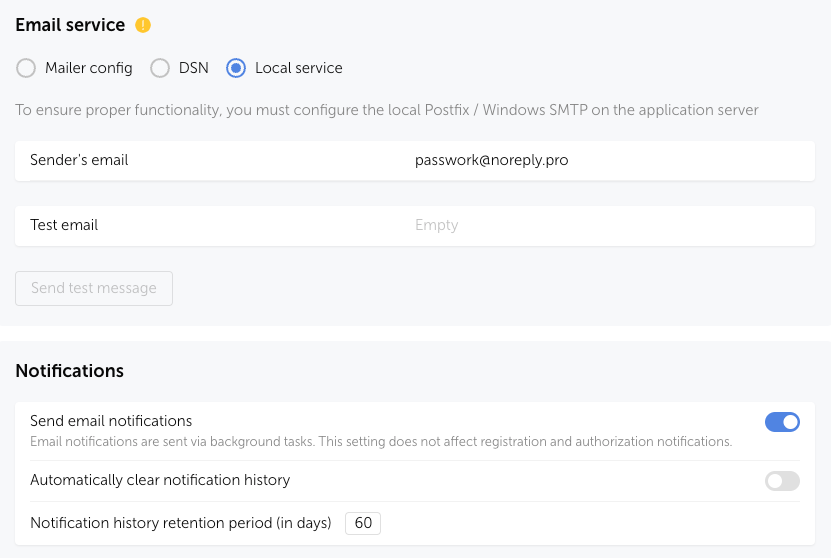

Open the Passwork web interface and go to Settings and Users → System Settings → Notifications section.

Activate the Send notifications by email option and in Mail Service select Local Service, specify the Sender Email and save the changes:

Installing the SMTP Server

Open PowerShell as "Administrator":

Using the Start context menu

1. Right-click on the Start icon in the lower-left corner of the screen.
2. Select "Windows PowerShell (Administrator)" from the context menu.

Using the Start menu

1. Left-click on the Start icon in the lower-left corner of the screen.
2. Type powershell
3. Open PowerShell as "Administrator" by pressing Ctrl + Shift + Enter

Install the SMTP server:

PowerShell

Install-WindowsFeature -Name SMTP-Server

Enable automatic startup for the smtpsvc service:

PowerShell

set-service smtpsvc -StartupType Automatic

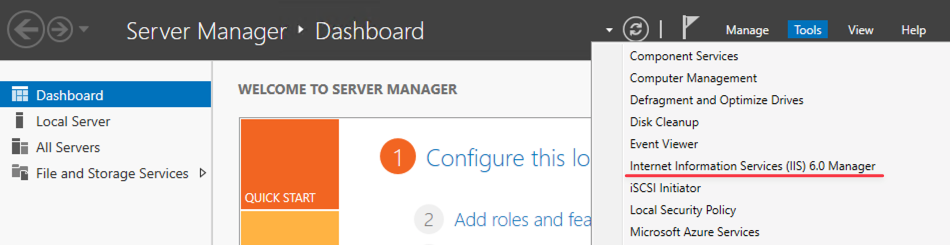

Open Server Manager → Tools → IIS 6.0 Manager:

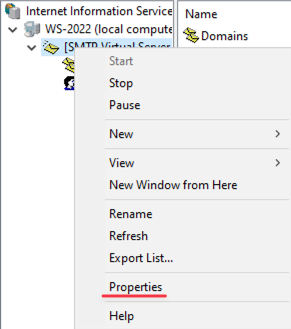

Open the SMTP server Properties:

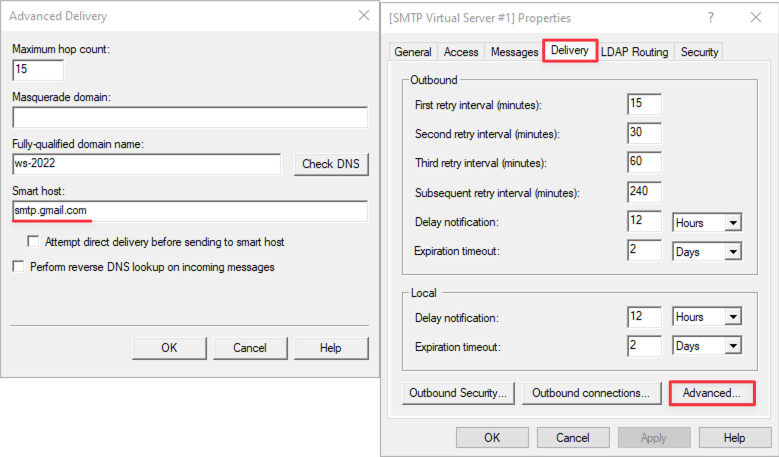

Go to Delivery → Advanced and fill in the Smart Host. For example, Gmail is used and you need to specify — smtp.gmail.com:

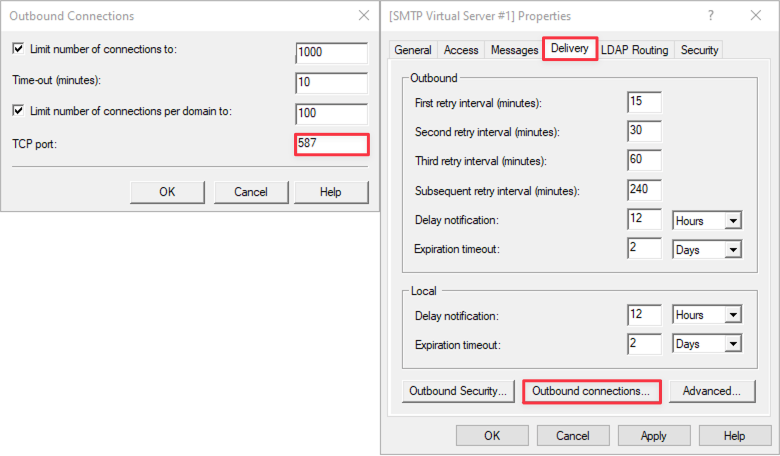

In Outbound Connections set port 587 for TCP:

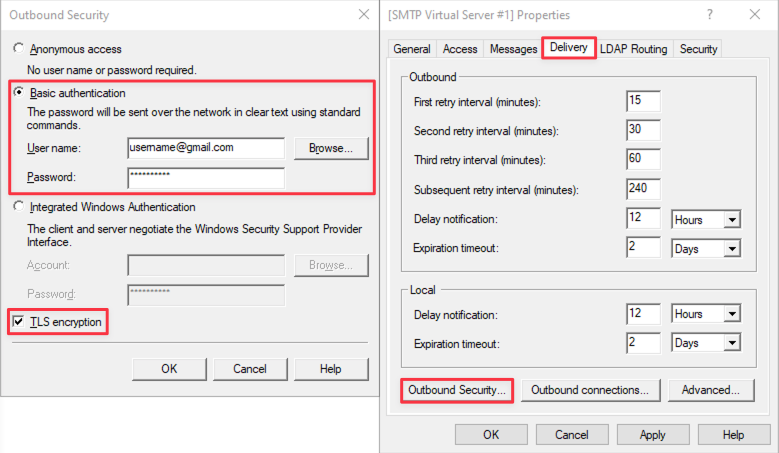

In Outbound Security perform the following:

• Select — Basic Authentication;
• Fill in — Username and Password;
• Activate — TLS encryption.

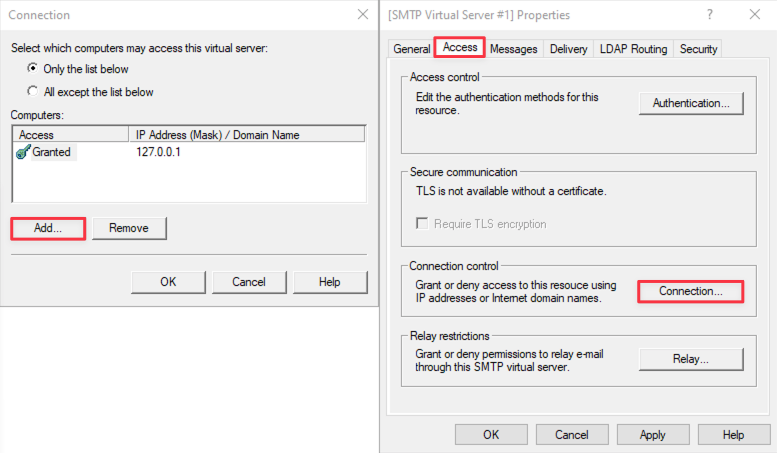

Open the Access section, in the Connection Control settings, add the IP address 127.0.0.1 to the allowed list:

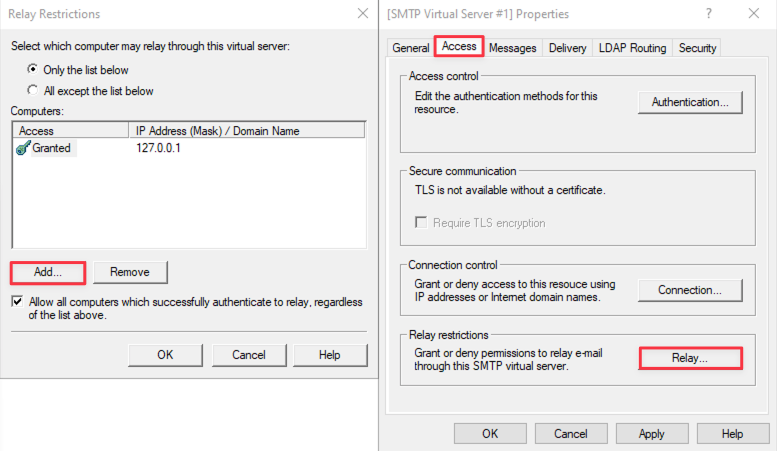

In the Relay Restrictions section add the IP address 127.0.0.1 to the allowed list:

SMTP server setup is complete.
